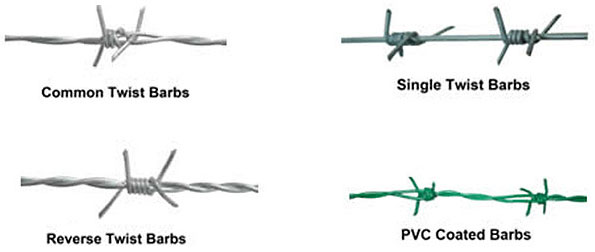

Products list
Material: Stainless steel wire, low carbon steel wire;
Surface treatment: Electro galvanized,Hot dipped galvanized,PVC coated;
Wire Thickness: core wire dia:16#-12#,barbed wire dia:16#-12#,barbed length:1-3cm,barbed space:7.5-15cm;
Color:Green, dark green, blue, yellow or other colors as you request
Tensile Strength:380-550N/mm2, 800-1200N/mm2;
Property:Easy installation, Beautiful outlook, Good corrosion resistance, firm structure, durable against hit;

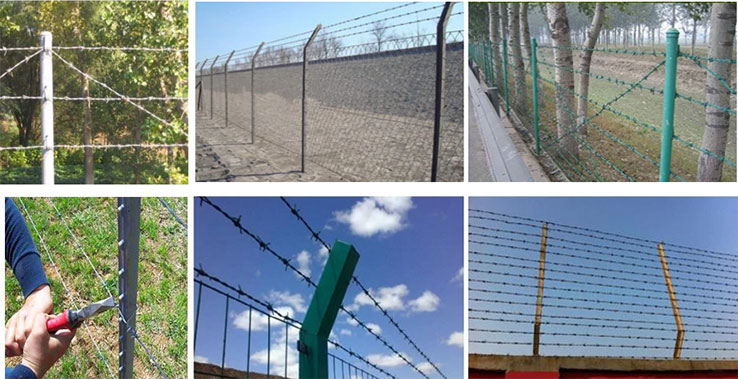

Application: Widely used in protecting of grass boundary, railway, highway, military, jail, agriculture, animal husbandry, dwelling house;
Packing: pallet;
| Gauge of Strand and Barb in BWG | Approximate Length per KG in Meter | |||
|---|---|---|---|---|
| Barbs Spacing 3'' | Barbs Spacing 4'' | Barbs Spacing 5'' | Barbs Spacing 6'' | |
| 12x12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
| 12x14 | 7.3335 | 7.9050 | 8.3015 | 8.5741 |
| 12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| 12-1/2x14 | 8.1096 | 8.8140 | 9.2242 | 9.5620 |
| 13x13 | 7.9808 | 8.8990 | 9.5721 | 10.0553 |
| 13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| 14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
