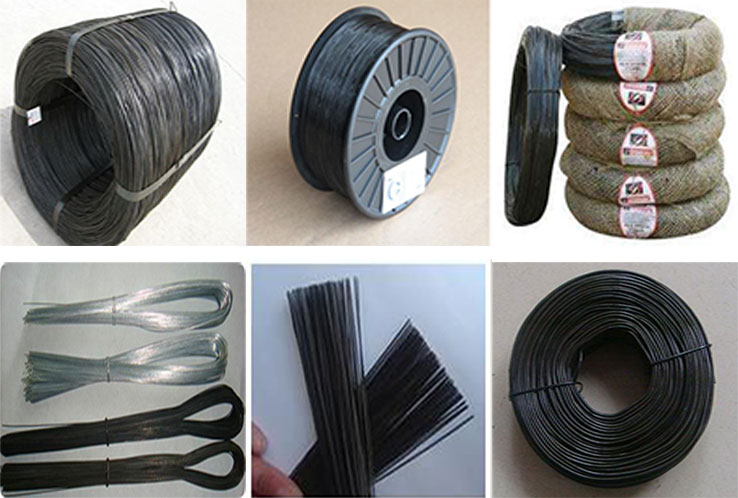

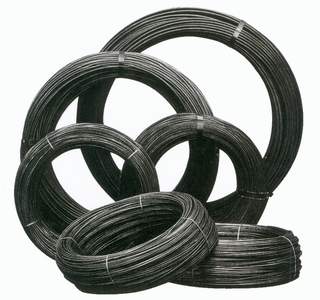

Black Annealed Iron Wire is made of high quality mild steel wire rod. It's also called Black Iron Wire or Black Wire. Mostly widely used in construction or daily use as binding material.
Material: high quality low carbon steel wire;
Surface treatment: spraying oil;
Wire Diameter: 8# to 22#;
Tensile Strength: 350-550N/mm2;
Standard Weight:25-500kg/roll;
Packing: inside plastic film, outside hessian cloth or woven plastic bag;
| Specification Reference | |||
|---|---|---|---|
| Wire Gauge | SWG(mm) | BWG(mm) | Metric(mm) |
| 8 | 4.05 | 4.19 | 4.00 |
| 9 | 3.66 | 3.76 | 4.00 |
| 10 | 3.25 | 3.40 | 3.50 |
| 11 | 2.95 | 3.05 | 3.00 |
| 12 | 2.64 | 2.77 | 2.80 |
| 13 | 2.34 | 2.41 | 2.50 |
| 14 | 2.03 | 2.11 | 2.50 |
| 15 | 1.83 | 1.83 | 1.80 |
| 16 | 1.63 | 1.65 | 1.65 |
| 17 | 1.42 | 1.47 | 1.40 |
| 18 | 1.22 | 1.25 | 1.20 |
| 19 | 1.02 | 1.07 | 1.00 |
| 20 | 0.91 | 0.84 | 0.90 |
| 21 | 0.81 | 0.81 | 0.80 |
| 22 | 0.71 | 0.71 | 0.70 |
| 23# to 34# also available for galvanized iron wire | |||
