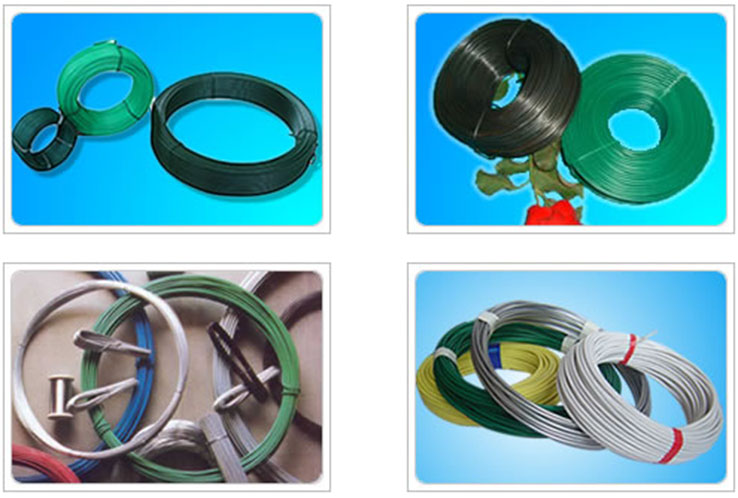

PVC Coated Wire is manufactured with quality iron wire. PVC is the most popular plastic for coating wires, as it is relatively low in cost, resilient, fire retardant and possesses good insulating properties.
The most popular use for PVC coated wire is in the construction of chain link fences for industrial security fences, freeways and tennis courts. It is also used in other applications such as coat hangers and handles.
Material: high quality low carbon steel wire;
Surface treatment: pvc coated;
Common color: green, black;
PVC coating: 0.4mm-1.0mm;
Tensile Strength: 350-550N/mm2;
Standard Weight:5-100kg/roll;
Packing: inside plastic film, outside hessian cloth or woven plastic bag;
| Specification Reference | |||
|---|---|---|---|
| BWG(mm) | Metric(mm) | BWG(mm) | Metric(mm) |
| Core wire diameter | Diameter after coated | ||
| 21 | 0.80 | 18 | 1.20 |
| 19 | 1.00 | 17 | 1.40 |
| 17 | 1.40 | 14 | 2.00 |
| 14 | 2.00 | 11 | 3.00 |
| 13 | 2.50 | 10 | 3.50 |
| other wire thickness also available! | |||
| Color: dark green, blue, yellow, and so on! | |||
